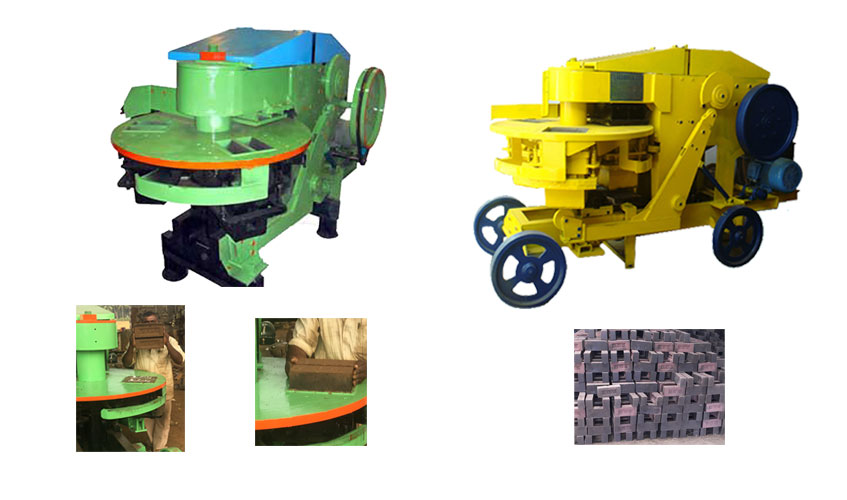

Automatic Mechanical Brick Press-Fly Ash & clay brick making machine

The Lakshmi Auto Brick Press has an automatic rotating 3-station table: a filling station, a moulding station and an unmoulding or ejection station.Motor power is used for the automatic pressing and ejection of the bricks as well as for the rotation of the table.This machine can produce either compressed earth blocks or clay bricks to be fired in a kiln.

As well as all our other dry pressing equipment, is immediately operational upon arrival on site.Considering its production capacity, the Lakshmi Auto Brick Press has a very low energy consumption: 1 diesel or 2,5 kW per hour, depending on its version.Due to its simple design, only two unskilled workers are required to operate the machine.In order to make the Lakshmi Auto Brick Press a reliable productionunit, all mechanical parts have been over dimensioned; a number of safety devices have been installed and all transmission gears are concentrated in a closed casing.Lakshmi Auto Brick Press exists in different versions electrical or diesel.

Specification:

Capacity 1000 - 2000 bricks / hour
Power 10 H. P.
Brick Size 230 x 110 x 75 mm
Max. Size 300 x 400 x 150 mm
System Mechanical, Automatic, Rotary Table, Three Stationed
Table Rotation Calm Gear (Automatic) Conveyor (or) Manual
Brick Manual Removal
Raw Material FlyAsh FlyAsh, Soil, Sand, Lime, Iron, LimeSludge, Oxide, Quarry Waste etc...
Raw Material Clay Clay
Weight 2500 Kgs. (Approximately)
