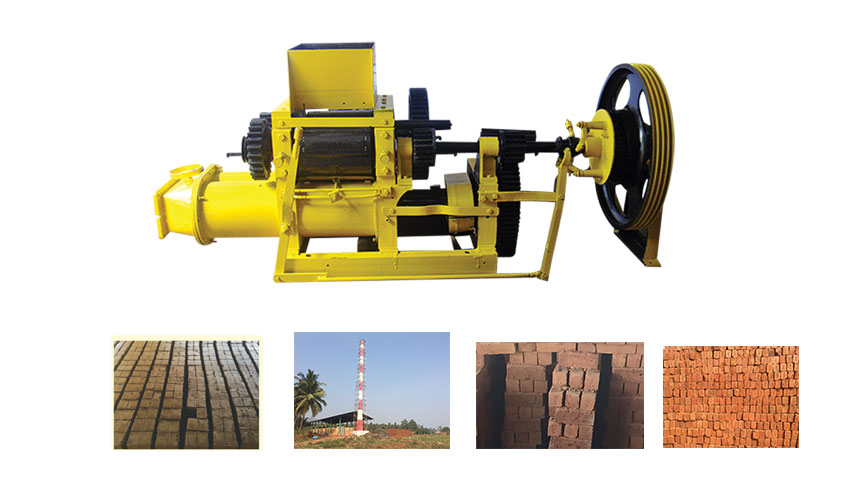

Pug Mill Wire cut clay brick making machine Model WC -2000

The Machine is sturdy and robust in design, well in performance, easy to operate, simple in maintenance, economic in production. The machine can be used either for brick making or for rooting tiles. The machine is heavy caste iron body, grinding rollers mounted on gun metal bearings and the PUG SHAFT provided with heavy ball thrust bearings. Feed roller is provided at the side of the barrel to avail and interrupted flow of the grinded clay to the compression chamber. The flat belt drive is arranged .the machine can be supplied either with one or two sets of rollers.

Extruded bricks, or wire cut bricks, tend to be more uniform in size and shape than soft mud or handmade bricks. It is also possible to apply a wide range of different textures to extruded bricks during the manufacturing process such as sanded textures, roller textures, drag wired textures, rustication and even glazes.One distinctive characteristic of an extruded brick, or wire cut brick, is that they tend to have perforations or core holes running through the bed of the bricks. These perforations come in many different patterns and are there to lighten the brick and aid the drying and firing process.

Specification:

Barrel Dia 330mm
Barrel Length 965mm
Grinding Roller 330dia *380mm
no of Grinding Roller 2
Driven pulley RPM 150
H.P Required 20/960 RPM
Out put Bricks 15,000
Out put tile slabs(8hrs) 6000
Weight approx 2025 kg
Floor Area Required 2500*1340*1150 mm H
