New Automatic Wire cut Brick making Machine

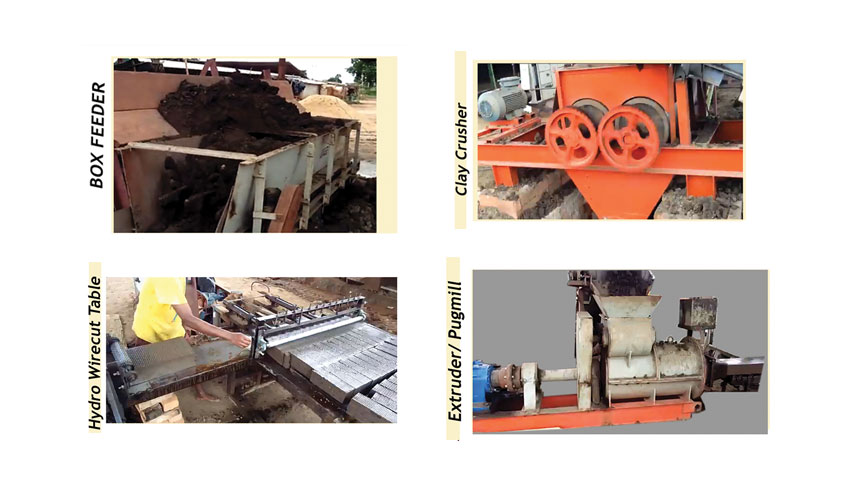

New Automatic wire cut brick machine are a relatively output of modern brick type that have become very popular over the past few decades. wire cut brick machine, are made using a more modern method of brick manufacturing. Relatively low moisture clay is extruded through a die to form a column. This column of clay is then cut with wires, thus the term wire cut, to split the clay into individual bricks.The Machine is sturdy and robust in design, well in performance, easy to operate, simple in maintenance, economic in production.

Extruded bricks, or wire cut bricks, tend to be more uniform in size and shape than soft mud or handmade bricks. It is also possible to apply a wide range of different textures to extruded bricks during the manufacturing process such as sanded textures, roller textures, drag wired textures, rustication and even glazes.One distinctive characteristic of an extruded brick, or wire cut brick, is that they tend to have perforations or core holes running through the bed of the bricks. These perforations come in many different patterns and are there to lighten the brick and aid the drying and firing process.

Specification:

Barrel Dia 330mm 457 dia*1710mm
Barrel Length 965mm 1550mm
Grinding Roller 330dia *380mm 450dia *508mm
no of Grinding Roller 2 2
Driven pulley RPM 150 106
H.P Required 20/960 RPM 40/960 RPM
Out put Bricks 15,000 20,000
Out put tile slabs(8hrs) 6000 10,500
Weight approx 2025 kg 4980 kg
Floor Area Required 2500*1340*1150 mm H 3970*1850*1450 mm H
